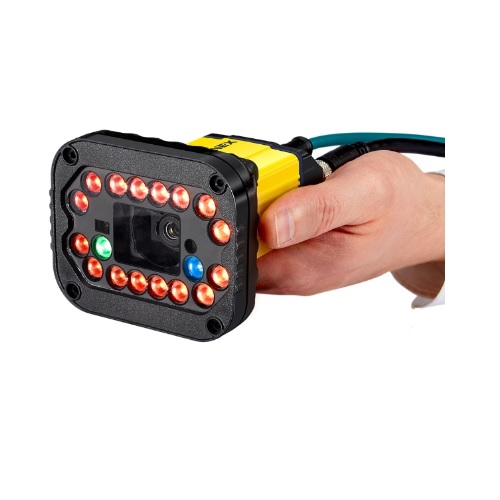

DMR 374Q Serisi
![DMR 374Q Serisi](/content/images/Urunlerimiz/500x500-370-yeni.jpg)
2X Güçlü Okuma Performansı
DataMan 370 serisi barkod okuyucular yeni 1D/2D Auto-Discrimination algoritması sayesinde 1D ve 2D kodlarda hızlı okuma ve üstün performans sağlamaktadır. DataMan 370 multi-core işlemci ile, algoritmaları ve proses işlemlerini paralel olarak gerçekleştirebilir, bunun neticesinde yüksek performanslı okuyuculara göre 2 kat daha hızlıdır.
![Cognex DM370 Application reading DPM codes on automotive engines](https://www.cognex.com/library/media/products/dataman-370/applications---automotive.jpg?h=258&w=458&la=en&hash=27B8365093DAA3B6584DC2D23FA3ECF65D9435BF)
QL Model | S Model | Q Model | X Model |
---|---|---|---|
Çok yönlü barkod okuma için optimize edilmiş 1DMax ve Hotbars teknolojisi ile sınıfının en iyisi 1D barkod okuma. | Yavaş hareket eden parçalar için 1D / 2D kodlar | Hızlı hareket eden parçalarda 1D / 2D kodlarının yüksek performanslı kod okuması. Bazı modellerde bulunan 2DMax ve 1DMax ve ID Quick algoritmaları içerir. | DPM kodları dahil zorlu 1D ve 2D kodların yüksek performanslı kod okuması. Bazı X modellerinde PowerGrid teknolojisi de bulunur. |
DataMan 370 Series Specifications | ||
---|---|---|
DataMan 374 | DataMan 375 | |
Algorithms | 1DMax, 2DMax, Hotbars, PowerGrid, 1D/2D Auto-Discrimination | |
Image Sensor | 1/1.8" CMOS | 2/3” CMOS |
Image Sensor Properties | Diagonal 8.9 mm; 3.45 μm square pixels | Diagonal 11.1 mm; 3.45 μm square pixels |
Image Sensor Resolution | 2048 x 1536 | 2448 x 2048 |
Electronic Shutter Speed | Min. exposure: 15 μs Max. exposure: 1000 μs with internal illumination/10000 μs with external illumination | |
Max Acquisition | Up to 80 Hz | Up to 55 Hz |
Lens Options | Liquid lens 10 mm, 16 mm, 24 mm; C-mount 12 mm, 16 mm, 25 mm, 35 mm, 40 mm | |
Trigger and Tune Buttons | Yes; Quick Setup Intelligent Tuning | |
Aimer | Optional | |
Discrete Inputs | 2 fixed + (*) opto-isolated | |
Discrete Outputs | 2 fixed + (*) opto-isolated | |
*Other I/O Points | 2 user-configurable | |
Status Outputs | Beeper, 5 multifunctional LEDs, 10 LED bar array, 360-degree indicator | |
Lighting | Integrated LEDs, red, blue or IR; diffuse, polarized, high powered integrated light (HPIL), high powered integrated torch (HPIT), various controllable external light options | Integrated LEDs, red, blue or IR; diffuse, polarized, high powered integrated torch (HPIT), various controllable external light options |
Communications | Ethernet and serial | |
Protocols | RS-232, TCP/IP, PROFINET, EtherNet/IP, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, Java Scripting enabled for custom protocols | |
Power Consumption | 24 VDC ±10%, 1.5 A maximum (HPIL/HPIT1) 24 VDC, 250 mA maximum (reader) Supplied by LPS or NEC class 2 only | |
Weight | 165 g | |
Dimensions | 73 mm x 54 mm x 42 mm; 113 mm x 91 mm x 75mm (with HPIT) | |
Operating Temperature | 0 °C–57 °C (32 °F–134.6 °F)2 | |
Storage Temperature | -20 °C–80 °C (-4 °F–176 °F) | |
Operating and Storage Humidity | < 95% non-condensing | |
Protection | IP67 with cables and appropriate lens cover attached | |
RoHS Certified | Yes | |
Approvals (CE, UL, FCC) | Yes |
